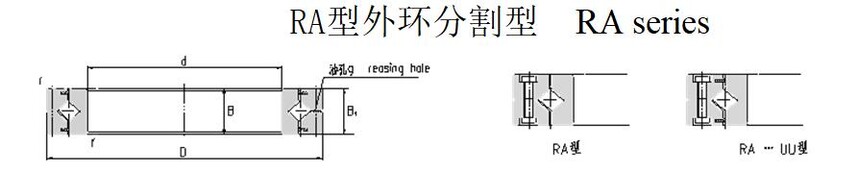

RA series crossed roller bearing

Collect

Details

Shaft diameter	Model No.	Major dimensions						Shoulder dimensions		Basic load rating
Shaft diameter	Model No.	Inner diameter	Outer diameter	Roller pitch circle diameter	Width	Greasing hole	rmin	ds	Dh	kN	kN	kg
50	RA5008		66	57	8	2	0.5	53.5	60.5	5.1	7.19	0.08
60	RA6008	60	76	67	8	2	0.5	63.5	70.5	5.68	8.68	0.09
70	RA7008	70	86	77	8	2	0.5	73.5	80.5	5.98	9.8	0.1
80	RA8008	80	96	87	8	2	0.5	83.5	90.5	6.37	11.3	0.11
90	RA9008	90	106	97	8	2	0.5	93.5	100.5	6.76	12.4	0.12
100	RA 10008	100	116	107	8	2	0.5	103.5	110.5	7.15	13.9	0.14
110	RA 11008	110	126	117	8	2	0.5	113.5	120.5	7.45	15	0.15
120	RA 12008	120	136	127	8	2	0.5	123.5	130.5	7.84	16.5	0.17
130	RA 13008	130	146	137	8	2	0.5	133.5	140.5	7.94	17.6	0.18
140	RA 14008	140	156	147	8	2	0.5	143.5	150.5	8.33	19.1	0.19
150	RA 15008	150	166	157	8	2	0.5	153.5	160.5	8.82	20.6	0.2
160	RA 16013	160	186	172	13	2.5	0.8	165	179	23.3	44.9	0.59
170	RA 17013	170	196	182	13	2.5	0.8	175	189	23.5	46.5	0.64
180	RA 18013	180	206	192	13	2.5	0.8	185	199	24.5	49.8	0.68
190	RA 19013	190	216	202	13	2.5	0.8	195	209	24.9	51.5	0.69
200	RA 20013	200	226	212	13	2.5	0.8	205	219	25.8	54.7	0.71
50	RA5008C	50	66	57	8	1.5	0.5	53.5	60.5	5.1	7.19	0.08
60	RA6008C	60	76	67	8	1.5	0.5	63.5	70.5	5.68	8.68	0.09
70	RA7008C	70	86	77	8	1.5	0.5	73.5	80.5	5.98	9.8	0.1
80	RA8008C	80	96	87	8	1.5	0.5	83.5	90.5	6.37	11.3	0.11
90	RA9008C	90	106	97	8	1.5	0.5	93.5	100.5	6.76	12.4	0.12
100	RA 10008C	100	116	107	8	1.5	0.5	103.5	110.5	7.15	13.9	0.14
110	RA 11008C	110	126	117	8	1.5	0.5	113.5	120.5	7.45	15	0.15
120	RA 12008C	120	136	127	8	1.5	0.5	123.5	130.5	7.84	16.5	0.17
130	RA 13008C	130	146	137	8	1.5	0.5	133.5	140.5	7.94	17.6	0.18
140	RA 14008C	140	156	147	8	1.5	0.5	143.5	150.5	8.33	19.1	0.19
150	RA 15008C	150	166	157	8	1.5	0.5	153.5	160.5	8.82	20.6	0.2
160	RA 16013C	160	186	172	13	2	0.8	165	179	23.3	44.9	0.59
170	RA 17013C	170	196	182	13	2	0.8	175	189	23.5	46.5	0.64
180	RA 18013C	180	206	192	13	2	0.8	185	199	24.5	49.8	0.68
190	RA 19013C	190	216	202	13	2	0.8	195	209	24.9	51.5	0.69
200	RA 20013C	200	226	212	13	2	0.8	205	219	25.8	54.7	0.7
