BNR high-speed angular contact bearing

Collect

Details

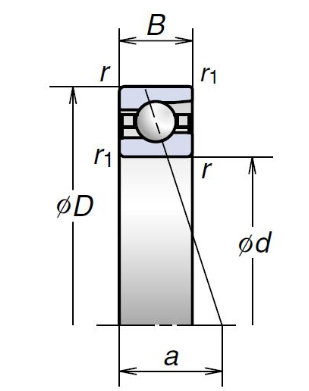

Bearing NO.	Dimension (mm)					Basic load rating (kN)		Permissible sxial load (kN)	Effective load center (mm)	Limiting speed (min–1)		Weight (kg)
Bearing NO.	d	D	B	r (min.)	r1 (min.)	Cr	C0r	Permissible sxial load (kN)	Effective load center (mm)	Grease	Oil	Weight (kg)
25BNR19S	25	42	9	0.3	0.15	5.95	3.5	4.95	9.9	41800	59800	0.042
25BNR19H	25	42	9	0.3	0.15	5.95	3.5	3.25	9.9	53800	83600	0.038
25BNR19X	25	42	9	0.3	0.15	5.95	3.5	3.25	9.9	62700	98600	0.038
30BNR19S	30	47	9	0.3	0.15	6.3	4.05	5.75	10.8	36400	52000	0.048
30BNR19H	30	47	9	0.3	0.15	6.3	4.05	3.8	10.8	46800	72800	0.043
30BNR19X	30	47	9	0.3	0.15	6.3	4.05	3.8	10.8	54600	85800	0.043
35BNR19S	35	55	10	0.6	0.3	9.2	6	8.55	12.3	31200	44500	0.072
35BNR19H	35	55	10	0.6	0.3	9.2	6	5.6	12.3	40000	62300	0.063
35BNR19X	35	55	10	0.6	0.3	9.2	6	5.6	12.3	46700	73400	0.063
40BNR19S	40	62	12	0.6	0.3	11.5	7.65	10.8	14.3	27500	39300	0.105
40BNR19H	40	62	12	0.6	0.3	11.5	7.65	7.1	14.3	35300	55000	0.092
40BNR19X	40	62	12	0.6	0.3	11.5	7.65	7.1	14.3	41200	64800	0.092
45BNR19S	45	68	12	0.6	0.3	12.1	8.7	12.4	15.2	24800	35400	0.125
45BNR19H	45	68	12	0.6	0.3	12.1	8.7	8.1	15.2	31900	49600	0.111
45BNR19X	45	68	12	0.6	0.3	12.1	8.7	8.1	15.2	37200	58500	0.111
50BNR19S	50	72	12	0.6	0.3	12.8	9.75	13.9	15.9	23000	32800	0.127
50BNR19H	50	72	12	0.6	0.3	12.8	9.75	9.1	15.9	29600	46000	0.111
50BNR19X	50	72	12	0.6	0.3	12.8	9.75	9.1	15.9	34500	54100	0.111
55BNR19S	55	80	13	1	0.6	14.4	11.4	16.2	17.5	20800	29700	0.178
55BNR19H	55	80	13	1	0.6	14.4	11.4	10.6	17.5	26700	41500	0.158
55BNR19X	55	80	13	1	0.6	14.4	11.4	10.6	17.5	31200	48900	0.158
60BNR19S	60	85	13	1	0.6	14.6	12	17.1	18.3	19400	27600	0.19
60BNR19H	60	85	13	1	0.6	14.6	12	11.2	18.3	24900	38700	0.17
60BNR19X	60	85	13	1	0.6	14.6	12	11.2	18.3	29000	45600	0.17
65BNR19S	65	90	13	1	0.6	15.2	13.2	18.7	19.1	18100	25900	0.204
65BNR19H	65	90	13	1	0.6	15.2	13.2	12.3	19.1	23300	36200	0.181
65BNR19X	65	90	13	1	0.6	15.2	13.2	12.3	19.1	27100	42600	0.181
70BNR19S	70	100	16	1	0.6	21.3	18.1	26.1	21.8	16500	23600	0.328
70BNR19H	70	100	16	1	0.6	21.3	18.1	17.1	21.8	21200	33000	0.292
70BNR19X	70	100	16	1	0.6	21.3	18.1	17.1	21.8	24800	38900	0.292
75BNR19S	75	105	16	1	0.6	21.6	19	27.5	22.6	15600	22300	0.348
75BNR19H	75	105	16	1	0.6	21.6	19	18	22.6	20000	31200	0.31
75BNR19X	75	105	16	1	0.6	21.6	19	18	22.6	23400	36700	0.31
80BNR19S	80	110	16	1	0.6	22	19.9	28.9	23.4	14800	21100	0.366
80BNR19H	80	110	16	1	0.6	22	19.9	18.9	23.4	19000	29500	0.326
80BNR19X	80	110	16	1	0.6	22	19.9	18.9	23.4	22200	34800	0.326
85BNR19S	85	120	18	1.1	0.6	29.4	26.3	38	25.7	13700	19600	0.527
85BNR19H	85	120	18	1.1	0.6	29.4	26.3	24.8	25.7	17600	27400	0.456
85BNR19X	85	120	18	1.1	0.6	29.4	26.3	24.8	25.7	20500	32200	0.456
90BNR19S	90	125	18	1.1	0.6	31.5	29.7	43	26.5	13100	18700	0.552
90BNR19H	90	125	18	1.1	0.6	31.5	29.7	28.1	26.5	16800	26100	0.48
90BNR19X	90	125	18	1.1	0.6	31.5	29.7	28.1	26.5	19600	30700	0.48
95BNR19S	95	130	18	1.1	0.6	32	31	50	28.3	12500	17800	0.571
95BNR19H	95	130	18	1.1	0.6	32	31	32.5	28.3	16000	24900	0.497
95BNR19X	95	130	18	1.1	0.6	32	31	32.5	28.3	18700	29400	0.497
100BNR19S	100	140	20	1.1	0.6	38	35	50.5	29.5	11700	16700	0.77
100BNR19H	100	140	20	1.1	0.6	38	35	33	29.5	15000	23400	0.673
100BNR19X	100	140	20	1.1	0.6	38	35	33	29.5	17500	27500	0.673
105BNR19S	105	145	20	1.1	0.6	38.5	36.5	53	31.5	11200	16000	0.795
105BNR19H	105	145	20	1.1	0.6	38.5	36.5	39	31.5	14400	22400	0.693
105BNR19X	105	145	20	1.1	0.6	38.5	36.5	39	31.5	16800	26400	0.693
110BNR19S	110	150	20	1.1	0.6	39	38	55.5	31.1	10800	15400	0.838
110BNR19H	110	150	20	1.1	0.6	39	38	42	31.1	13900	21600	0.733
110BNR19X	110	150	20	1.1	0.6	39	38	42	31.1	16200	25400	0.733
120BNR19S	120	165	22	1.1	0.6	54	52	75	34.2	9900	14100	1.124
120BNR19H	120	165	22	1.1	0.6	54	52	49	34.2	12700	19700	0.949
120BNR19X	120	165	22	1.1	0.6	54	52	49	34.2	14800	23200	0.949
130BNR19S	130	180	24	1.5	1	59.5	58.5	85	37.2	9100	13000	1.477
130BNR19H	130	180	24	1.5	1	59.5	58.5	56	37.2	11700	18100	1.265
140BNR19S	140	190	24	1.5	1	60	61.5	89.5	38.8	8500	12200	1.567
140BNR19H	140	190	24	1.5	1	60	61.5	58.5	38.8	11000	17000	1.353
150BNR19S	150	210	28	2	1	77	78.5	114	43.2	7800	11200	2.459
150BNR19H	150	210	28	2	1	77	78.5	75	43.2	10000	15600	2.13
