Open type four contact thin section ball bearing

Collect

Details

Bearing Number	Dimensions in Inches				Capacities（lbs）						Wight（lbs）
	Bore	Outside Dia.	L1	L2	Radial		axial		Torque（in-lbs）
	Bore	Outside Dia.	L1	L2	Dynamic	Static	Dynamic	Static	Dynamic	Static
KAA10XL0	1	1.375	1.14	1.235	290	247	730	370	170	110	0.026
KAA15XL0	1.5	1.875	1.64	1.735	400	296	1	460	340	187	0.039
KAA17XL0	1.75	2.125	1.89	1.985	460	319	1.14	500	440	232	0.045

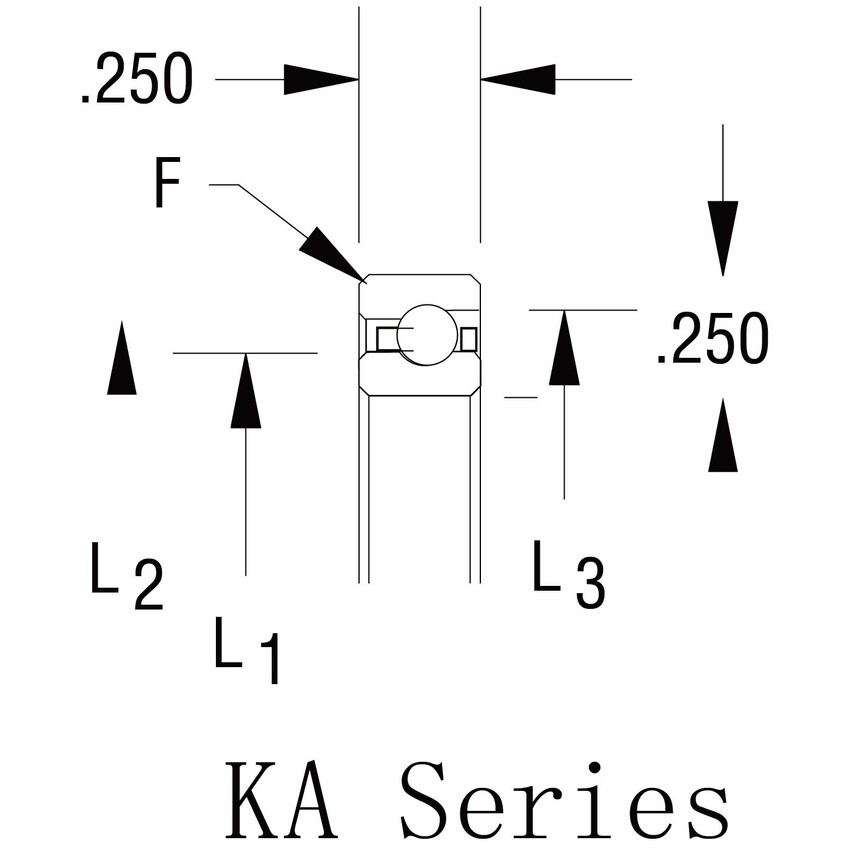

KA020XP0	2	2.5	2.186	2.314	680	514	1.71	790	770	434	0.1
KA025XP0	2.5	3	2.686	2.814	830	583	2.09	910	1.15	601	0.13
KA030XP0	3	3.5	3.186	3.314	990	643	2.47	1.01	1.6	785	0.15
KA035XP0	3.5	4	3.686	3.814	1.14	701	2.85	1.11	2.13	986	0.18
KA040XP0	4	4.5	4.186	4.314	1.29	756	3.22	1.21	2.74	1.205	0.19
KA042XP0	4.25	4.75	4.436	4.564	1.37	783	3.41	1.26	3.07	1.321	0.2
KA045XP0	4.5	5	4.686	4.814	1.44	809	3.6	1.31	3.42	1.441	0.22
KA047XP0	4.75	5.25	4.936	5.064	1.52	834	3.79	1.35	3.79	1.565	0.23
KA050XP0	5	5.5	5.186	5.314	1.59	859	3.98	1.4	4.18	1.693	0.24
KA055XP0	5.5	6	5.686	5.814	1.75	908	4.36	1.48	5.02	1.959	0.25
KA060XP0	6	6.5	6.186	6.314	1.9	955	4.74	1.57	5.93	2.24	0.28
KA065XP0	6.5	7	6.686	6.814	2.05	1.001	5.12	1.65	6.91	2.535	0.3
KA070XP0	7	7.5	7.186	7.314	2.2	1.046	5.5	1.73	7.98	2.844	0.31
KA075XP0	7.5	8	7.686	7.814	2.35	1.089	5.88	1.81	9.12	3.165	0.34
KA080XP0	8	8.5	8.186	8.314	2.5	1.131	6.26	1.89	10.33	3.499	0.38
KA090XP0	9	9.5	9.186	9.314	2.81	1.212	7.02	2.04	12.99	4.204	0.44
KA100XP0	10	10.5	10.186	10.314	3.11	1.289	7.78	2.18	15.94	4.956	0.5
KA110XP0	11	11.5	11.186	11.314	3.41	1.362	8.54	2.32	19.21	5.75	0.52
KA120XP0	12	12.5	12.186	12.314	3.72	1.433	9.3	2.45	22.77	6.587	0.56
KB020XP0	2	2.625	2.231	2.393	930	758	2.34	1.13	1.08	658	0.16
KB025XP0	2.5	3.125	2.731	2.893	1.14	848	2.84	1.29	1.6	895	0.19
KB030XP0	3	3.625	3.231	3.393	1.34	933	3.35	1.44	2.22	1.159	0.24
KB035XP0	3.5	4.125	3.731	3.893	1.54	1.014	3.86	1.59	2.94	1.45	0.27
KB040XP0	4	4.625	4.231	4.393	1.75	1.091	4.37	1.72	3.77	1.764	0.3
KB042XP0	4.25	4.875	4.481	4.643	1.83	1.12	4.57	1.78	4.17	1.917	0.31
KB045XP0	4.5	5.125	4.731	4.893	1.95	1.165	4.88	1.85	4.69	2.103	0.33
KB047XP0	4.75	5.375	4.981	5.143	2.03	1.193	5.08	1.9	5.14	2.265	0.34
KB050XP0	5	5.625	5.231	5.393	2.15	1.236	5.38	1.98	5.72	2.463	0.38
KB055XP0	5.5	6.125	5.731	5.893	2.36	1.304	5.89	2.1	6.85	2.844	0.41
KB060XP0	6	6.625	6.231	6.393	2.56	1.371	6.4	2.22	8.08	3.247	0.44
KB065XP0	6.5	7.125	6.731	6.893	2.76	1.435	6.91	2.34	9.41	3.668	0.47
KB070XP0	7	7.625	7.231	7.393	2.97	1.498	7.42	2.45	10.85	4.109	0.5
KB075XP0	7.5	8.125	7.731	7.893	3.17	1.559	7.92	2.56	12.38	4.568	0.53
KB080XP0	8	8.625	8.231	8.393	3.37	1.618	8.43	2.67	14.02	5.045	0.57
KB090XP0	9	9.625	9.231	9.393	3.78	1.732	9.45	2.88	17.6	6.05	0.66
KB100XP0	10	10.625	10.231	10.393	4.19	1.841	10.46	3.08	21.58	7.121	0.73
KB110XP0	11	11.625	11.231	11.393	4.59	1.945	11.48	3.28	25.97	8.254	0.75
KB120XP0	12	12.625	12.231	12.393	5	2.045	12.5	3.47	30.77	9.446	0.83
KB140XP0	14	14.625	14.231	14.393	5.81	2.234	14.53	3.84	41.58	11.994	1.05
KB160XP0	16	16.625	16.231	16.393	6.62	2.41	16.56	4.19	54.02	14.75	1.2
KB180XP0	18	18.625	18.231	18.393	7.44	2.576	18.59	4.52	68.09	17.694	1.35
KB200XP0	20	20.625	20.231	20.393	8.25	2.731	20.62	4.85	83.78	20.813	1.5
KC040XP0	4	4.75	4.277	4.473	2.1	1.417	5.26	2.21	4.6	2.326	0.45
KC042XP0	4.25	5	4.527	4.723	2.22	1.464	5.56	2.29	5.14	2.541	0.47
KC045XP0	4.5	5.25	4.777	4.973	2.34	1.51	5.86	2.38	5.71	2.762	0.48
KC047XP0	4.75	5.5	5.027	5.223	2.46	1.556	6.16	2.46	6.32	2.991	0.5
KC050XP0	5	5.75	5.277	5.473	2.59	1.6	6.46	2.54	6.95	3.226	0.58
KC055XP0	5.5	6.25	5.777	5.973	2.83	1.687	7.06	2.69	8.3	3.717	0.59
KC060XP0	6	6.75	6.277	6.473	3.07	1.77	7.66	2.84	9.77	4.234	0.63
KC065XP0	6.5	7.25	6.777	6.973	3.31	1.851	8.27	2.99	11.37	4.775	0.68
KC070XP0	7	7.75	7.277	7.473	3.55	1.931	8.87	3.13	13.08	5.341	0.73
KC075XP0	7.5	8.25	7.777	7.973	3.79	2.007	9.47	3.27	14.91	5.93	0.78
KC080XP0	8	8.75	8.277	8.473	4.03	2.082	10.07	3.41	16.87	6.542	0.84
KC090XP0	9	9.75	9.277	9.473	4.51	2.226	11.27	3.67	21.13	7.83	0.94
KC100XP0	10	10.75	10.277	10.473	4.99	2.364	12.47	3.93	25.88	9.201	1.06
KC110XP0	11	11.75	11.277	11.473	5.47	2.496	13.68	4.18	31.11	10.651	1.16
KC120XP0	12	12.75	12.277	12.473	5.95	2.622	14.88	4.42	36.83	12.174	1.25
KC140XP0	14	14.75	14.277	14.473	6.91	2.862	17.28	4.89	49.69	15.434	1.52
KC160XP0	16	16.75	16.277	16.473	7.88	3.086	19.69	5.33	64.48	18.955	1.73
KC180XP0	18	18.75	18.277	18.473	8.84	3.295	22.09	5.76	81.19	22.712	1.94
KC200XP0	20	20.75	20.277	20.473	9.8	3.492	24.5	6.17	99.83	26.695	2.16
KC250XP0	25	25.75	25.277	25.473	12.2	3.941	30.51	7.14	154.8	37.518	2.69
KC300XP0	30	30.75	30.277	30.473	14.61	4.338	36.52	8.05	221.9	49.436	3.21
KD040XP0	4	5	4.37	4.63	3.08	2.311	7.7	3.52	6.93	3.901	0.78
KD042XP0	4.25	5.25	4.62	4.88	3.19	2.355	7.98	3.6	7.58	4.196	0.83
KD045XP0	4.5	5.5	4.87	5.13	3.42	2.454	8.55	3.77	8.55	4.602	0.88
KD047XP0	4.75	5.75	5.12	5.38	3.53	2.496	8.84	3.86	9.28	4.916	0.94
KD050XP0	5	6	5.37	5.63	3.76	2.592	9.41	4.02	10.35	5.348	1
KD055XP0	5.5	6.5	5.87	6.13	4.1	2.725	10.26	4.26	12.31	6.134	1.06
KD060XP0	6	7	6.37	6.63	4.45	2.855	11.12	4.49	14.45	6.961	1.16
KD065XP0	6.5	7.5	6.87	7.13	4.79	2.98	11.97	4.72	16.76	7.826	1.22
KD070XP0	7	8	7.37	7.63	5.13	3.103	12.83	4.94	19.24	8.73	1.31
KD075XP0	7.5	8.5	7.87	8.13	5.47	3.222	13.68	5.16	21.89	9.669	1.41
KD080XP0	8	9	8.37	8.63	5.81	3.338	14.54	5.37	24.71	10.643	1.53
KD090XP0	9	10	9.37	9.63	6.5	3.561	16.25	5.79	30.87	12.693	1.72
KD100XP0	10	11	10.37	10.63	7.18	3.776	17.96	6.19	37.71	14.872	1.88
KD110XP0	11	12	11.37	11.63	7.87	3.981	19.67	6.57	45.23	17.173	2.06
KD120XP0	12	13	12.37	12.63	8.55	4.178	21.38	6.95	53.44	19.59	2.25
KD140XP0	14	15	14.37	14.63	9.92	4.551	24.8	7.67	71.91	24.755	2.73
KD160XP0	16	17	16.37	16.63	11.29	4.899	28.22	8.36	93.11	30.325	3.1
KD180XP0	18	19	18.37	18.63	12.65	5.226	31.64	9.03	117	36.268	3.48
KD200XP0	20	21	20.37	20.63	14.02	5.534	35.06	9.67	143.7	42.561	3.85
KD210XP0	21	22	21.37	21.63	14.71	5.682	36.77	9.98	158.1	45.826	4.04
KD250XP0	25	26	25.37	25.63	17.44	6.235	43.61	11.18	222.4	59.649	4.79
KD300XP0	30	31	30.37	30.63	20.86	6.856	52.16	12.6	318.1	78.447	5.73
KF040XP0	4	5.5	4.555	4.945	5.36	4.665	13.4	6.83	12.73	8.312	1.9
KF042XP0	4.25	5.75	4.805	5.195	5.64	4.795	14.11	7.07	14.11	8.993	2
KF045XP0	4.5	6	5.055	5.445	5.93	4.923	14.81	7.3	15.55	9.695	2.1
KF047XP0	4.75	6.25	5.305	5.695	6.21	5.048	15.52	7.53	17.07	10.416	2.2
KF050XP0	5	6.5	5.555	5.945	6.49	5.172	16.22	7.76	18.66	11.157	2.3
KF055XP0	5.5	7	6.055	6.445	7.05	5.415	17.63	8.2	22.04	12.696	2.5
KF060XP0	6	7.5	6.555	6.945	7.62	5.651	19.05	8.63	25.71	14.311	2.7
KF065XP0	6.5	8	7.055	7.445	8.18	5.88	20.46	9.05	29.66	15.993	2.9
KF070XP0	7	8.5	7.555	7.945	8.75	6.103	21.87	9.46	33.89	17.744	3.2
KF075XP0	7.5	9	8.055	8.445	9.31	6.323	23.28	9.87	38.41	19.568	3.4
KF080XP0	8	9.5	8.555	8.945	9.88	6.535	24.69	10.26	43.2	21.453	3.5
KF090XP0	9	10.5	9.555	9.945	11	6.947	27.51	11.03	53.64	25.41	3
KF100XP0	10	11.5	10.555	10.945	12.13	7.342	30.33	11.77	65.21	29.608	4.3
KF110XP0	11	12.5	11.555	11.945	13.26	7.721	33.15	12.49	77.91	34.032	4.8
KF120XP0	12	13.5	12.555	12.945	14.39	8.084	35.97	13.19	91.73	38.666	5.2
KF140XP0	14	15.5	14.555	14.945	16.65	8.775	41.62	14.53	122.8	48.556	6
KF160XP0	16	17.5	16.555	16.945	18.9	9.421	47.26	15.82	158.3	59.2	7.1
KF180XP0	18	19.5	18.555	18.945	21.16	10.028	52.9	17.06	198.4	70.537	7.9
KF200XP0	20	21.5	20.555	20.945	23.42	10.602	58.55	18.25	243	82.528	8.9
KF250XP0	25	26.5	25.555	25.945	29.06	11.909	72.65	21.07	374.2	115.037	10.9
KF300XP0	30	31.5	30.555	30.945	34.7	13.065	86.76	23.72	533.6	150.708	13
KF350XP0	35	36.5	35.555	35.945	40.35	14.1	100.9	26.22	721.2	189.106	15.1
KF400XP0	40	41.5	40.555	40.945	45.99	15.034	115	28.62	937.1	229.832	17.2
KG040XP0	4	6	4.742	5.258	8.21	7.979	20.52	11.26	20.52	14.966	3.6
KG042XP0	4.25	6.25	4.992	5.508	8.21	7.917	20.52	11.26	21.55	15.592	3.8
KG045XP0	4.5	6.5	5.242	5.758	8.76	8.205	21.89	11.75	24.08	16.93	4
KG047XP0	4.75	6.75	5.492	6.008	9.3	8.487	23.26	12.23	26.74	18.306	4.1
KG050XP0	5	7	5.742	6.258	9.85	8.762	24.62	12.71	29.55	19.721	4.3
KG055XP0	5.5	7.5	6.242	6.758	10.4	8.979	25.99	13.18	33.79	21.896	4.7
KG060XP0	6	8	6.742	7.258	11.49	9.503	28.73	14.09	40.22	24.956	5.1
KG065XP0	6.5	8.5	7.242	7.758	12.04	9.713	30.1	14.53	45.14	27.327	5.4
KG070XP0	7	9	7.742	8.258	13.13	10.208	32.83	15.4	52.53	30.636	5.8
KG075XP0	7.5	9.5	8.242	8.758	13.68	10.41	34.2	15.82	58.14	33.196	6.1
KG080XP0	8	10	8.742	9.258	14.77	10.882	36.94	16.65	66.48	36.743	6.5
KG090XP0	9	11	9.742	10.258	16.42	11.526	41.04	17.87	82.08	43.24	7.2
KG100XP0	10	12	10.742	11.258	18.06	12.147	45.14	19.04	99.32	50.124	7.9
KG110XP0	11	13	11.742	12.258	19.7	12.739	49.25	20.18	118.2	57.347	8.6
KG120XP0	12	14	12.742	13.258	21.34	13.315	53.35	21.28	138.7	64.935	9.3
KG140XP0	14	16	14.742	15.258	24.62	14.404	61.56	23.41	184.7	81.056	10.8
KG160XP0	16	18	16.742	17.258	27.91	15.425	69.77	25.45	237.2	98.373	12.3
KG180XP0	18	20	18.742	19.258	31.19	16.386	77.98	27.41	296.3	116.793	13.7
KG200XP0	20	22	20.742	21.258	34.47	17.293	86.18	29.3	362	136.238	15.8
KG220XP0	22	24	22.742	23.258	37.76	18.152	94.39	31.13	434.2	156.625	17.3
KG250XP0	25	27	25.742	26.258	42.68	19.36	106.7	33.78	554.9	188.838	19.5
KG300XP0	30	32	30.742	31.258	50.89	21.2	127.2	37.98	788.8	246.541	23.3
KG350XP0	35	37	35.742	36.258	59.1	22.845	147.7	41.97	1064000	308.527	27.1
KG400XP0	40	42	40.742	41.258	67.31	24.332	168.3	45770	1380000	374256	30.8
